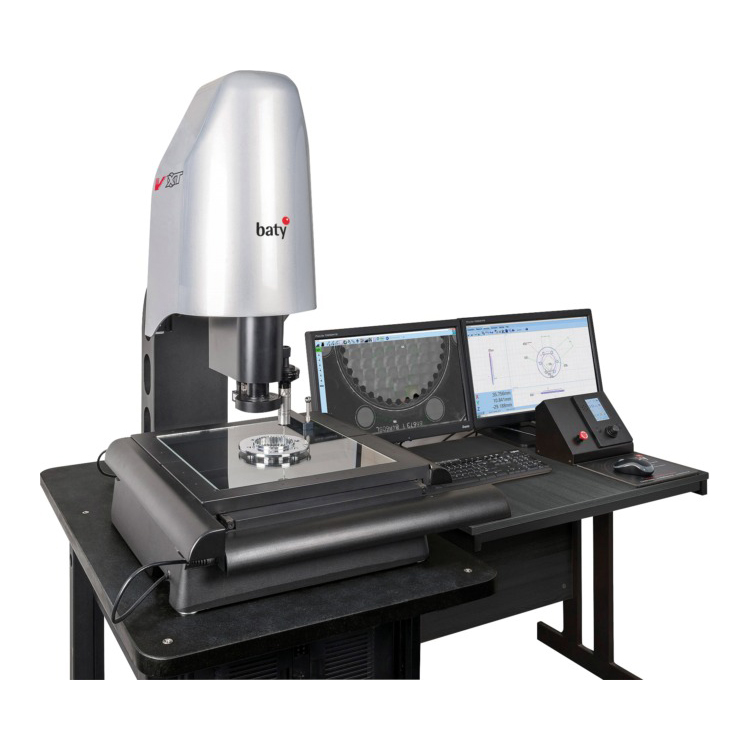

Venture 3030 CNC XT Camera based vision system with 3D probe

Part Number	ME-VI-3030-CNC-XT
CNC Travel Range	X – 300 mm, Y – 300 mm, Z – 200 mm
Resolution	Auto Focus with 0.5 Micron resolution scales
Optics	6.5:1 CNC Zoom Upgrade (Model: VI-9000-310-USB)
Controller	Windows-based industrial PC controller with 3-axis Fusion (MK4) software
Touch Probe Kit	VI-TP20-KIT: TP20 Renishaw Touch Probe Kit
Control Interface	3-Axis CNC and manual precision joystick with touchscreen display
Imaging System	High-resolution USB2 colour camera
Lighting System	Fully programmable 64 LED surface light, Co-axial (TTL) light, and collimated under-stage lighting
Accessories	Wireless keyboard & mouse, glass pixel calibration slide
2 x LCD Monitors Scanning and best fitting - contact and non-contact Fully dimensioned part view SPC include 2D and 3D program from CAD
