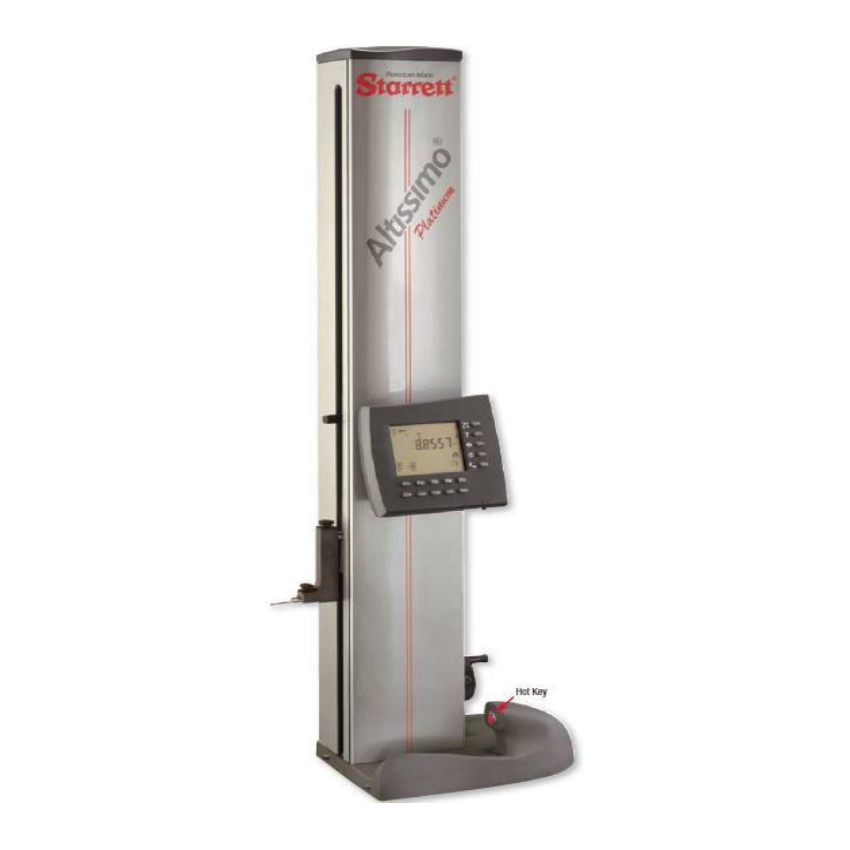

Starrett Altissimo Electronic Height Gage

Measuring Range	24"/600 mm (Extendible to 30"/750 mm by rotating probe holder 180°)
Resolution	.0001 "/.0005"/.001" (.002 mm/.01 mm/.02 mm)
Accuracy No. 2000-24 No. 2001-24 Platinum	±.0006" (.015 mm) ±.0003" (.008 mm)
Repeatability	±.0001" (±.002 mm)
Power Source	NiMH Rechargeable Batteries . (120V AC/60Hz Charger/Adapter furnished) Operation time: 100+ Hours, Recharging time: 10 Hours
Standard Accessories	.1875"/4.8 mm Dia. Carbide Probe, Probe Holder, AC Charger/Adapter, Probe Calibration Block
Dimensions	Length 11" (279 mm), Width 7 3/4" (197 mm), Height 36 1/2" (927 mm)
Weight	40 Ibs. (18 kg)
Perpendicularity	.0004" (0.010 mm)
