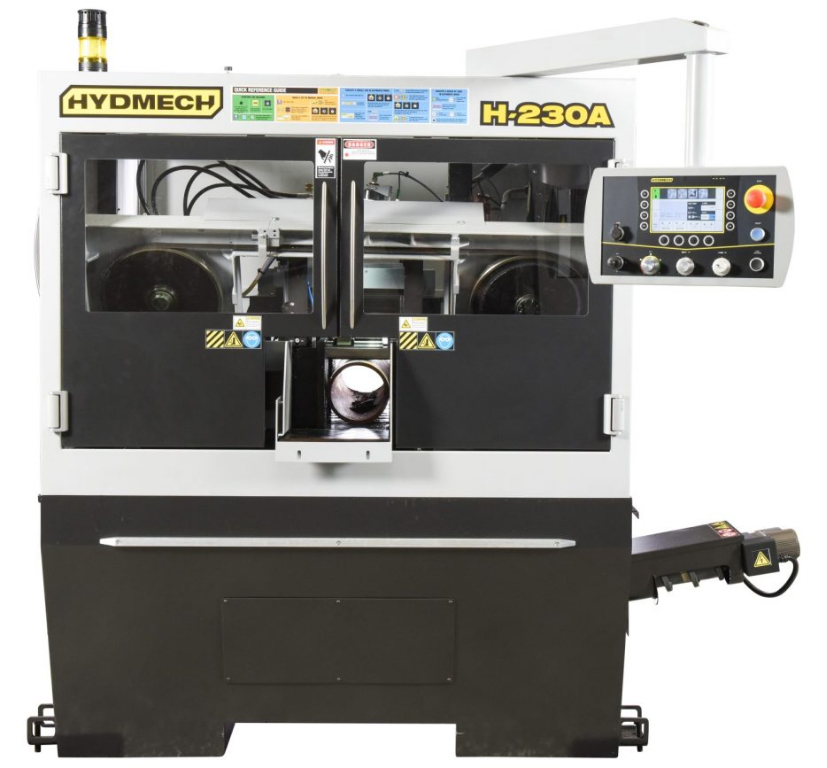

HYDMECH H-230A Automatic Dual Post Horizontal Band Saw

Our Resources

Capacity	Rectangular (h x w)	Round	Square
90°	9” x 9”	9”	9”
5 mm or 0.19685” is the smallest diameter of material that can be cut

Blade Size	1” x 9’ 8”
Blade Drive	3 HP VFD
Machine Voltage	480 v (all other voltages are require optional transformers)
Blade Speed	50-350 SFM
Automatic Multi-indexing	0-19”
Remnant Length	2.5” (6” with bundling)
Coolant Tank Capacity	30 Gallons
Machine Weight	2,200 lbs.
Table Height	35”
Dimensions (w x l x h)	61” x 63” x 67”
