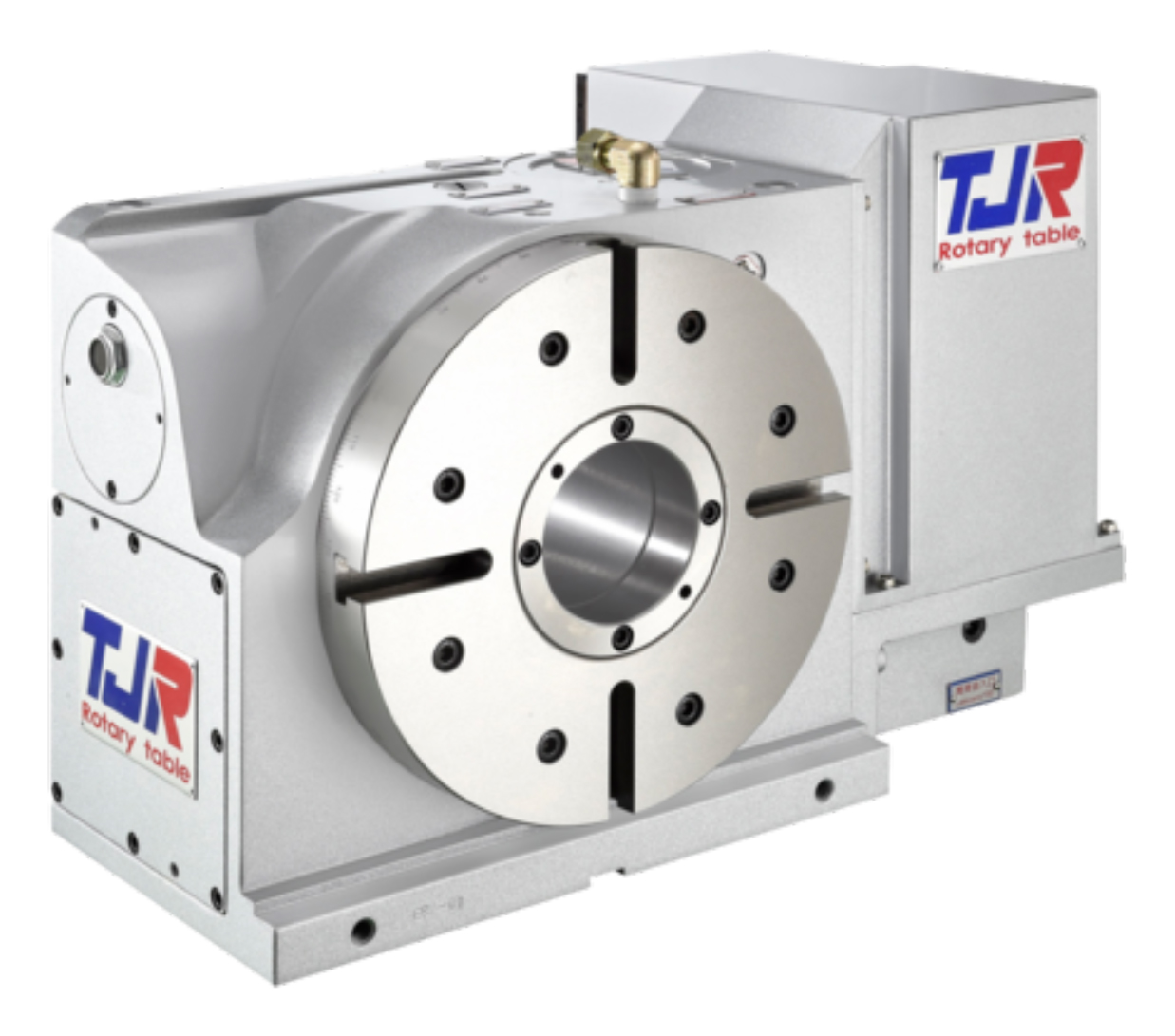

TJR RC-255R Rotary Table

Type Manufacturer Model New Right Side Motor
Rotary Table TJR RC-255R In-Stock Roller Gear Cam

The Core of TJR RC Series Roller-Drive CNC Rotary Table: Exclusive Zero-Backlash Mechanism By preloading the input and output beforehand, the four-cam followers can be always kept in contact with the cam surface, which eliminates backlash completely and provides high rigidity. TJR RC series roller gear cam rotary table with proprietary adjustment ensures the optimum preload. The cam followers planted in the turret employ internal roller bearings which can transmit the motor torque efficiently while rotating. Besides, the cam followers can be rotated at low torque for the long term. Without wear and adjustment.

Specifications

TABLE DIAMETER 10.039" 255 mm
TABLE CENTRAL HOLE DIA 4.3307" 110 mm
CENTER THROUGH HOLE DIA 3.1496" 80 mm
CENTER HEIGHT (VERTICAL) 6.2992" 160 mm
TABLE HEIGHT (HORIZONTAL) 7.874" 200 mm
MAX ROTATION SPEED 50 RPM 50 RPM
MAX WORKPIECE WEIGHT (VERTICAL) 220.5 lb 100 kg
BRAKE SYSTEM Oil Brake Oil Brake
